Description
Technical Parameter

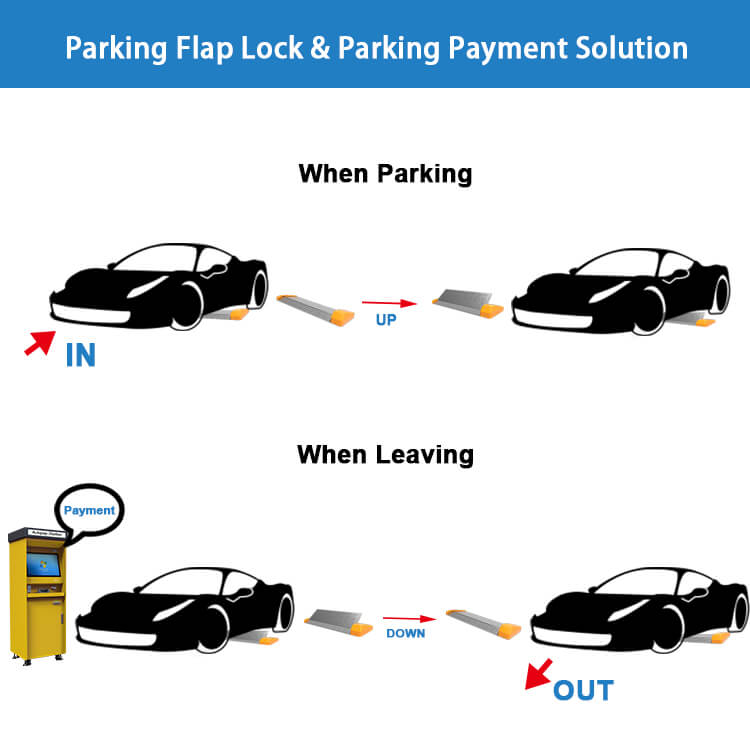

Parking and payment procedure
- Flap lock is installed in the middle of each parking space. Sometimes flap lock can be found in front of the parking space.
- Drive over the flap lock and park the car at the vacant space. Even if it is vacant, do not park when the flap lock is up.
- Park the car within 2 minutes. The flap lock will rise automatically.
- Remember the number of the parking space.
- Press the space number at the payment machine. After paying parking fee, the parking flap-lock will go down automatically.
- Make sure that the flap is down before you drive out from the space.

| Power supply |
Electricity, solar energy, wind energy |
| Dimension |
1050*330*220mm(up), 1050*330*121mm(down) |
| Drive mode |
Motor |
| Motor working voltage |
24V |
| Motor trigger way |
Loop coil trigger |
| The max. resistance weight |
2 tons |
| Barrier ascending time |
<10s |
| Barrier descending time |
<10s |
| Protection class |
IP67 |
