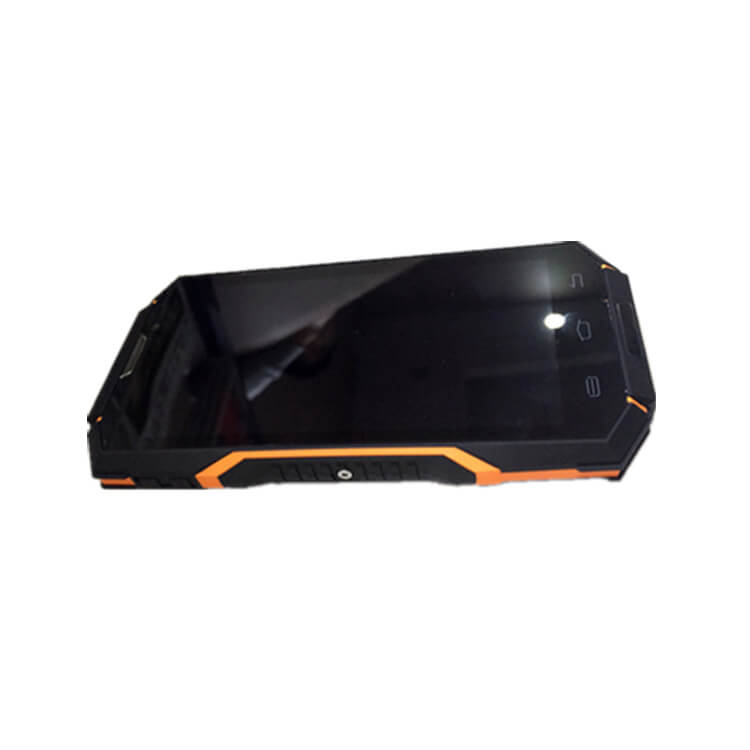

Handheld Parking Ticket Machine

It is used for the inspector to monitor the status of the parking space and the payment status in the management area and can also be used to recharge electronic tags.
Description Technical Parameter
Handheld parking ticket machine is used for on-street parking payment collection. After parking, the parking attendant goes near the driver, chooses a parking space, asking for parking duration, then after payment, a receipt is printed.

Handheld parking ticket machine works as part of a street parking system. Insert with 4G SIM cards, it can connect to the server wirelessly. All parking data can be sent to the backend system for the record.

Feature for handheld parking ticket machine

  • Large-screen high-definition color touch screen.
  • Equipped with the camera that supports vehicle picture taking and transfers photos to the management system.
  • Connection to external Bluetooth printer, which is for parking receipt printing.
  • 4G communication network.
  • Each toll collector can manage 32 parking spaces for parking charge collection. Graphical interface, and multi-level reminder.
  • Support prepaid card (13.56MHz contactless IC card) payment, evasion fees recovery, parking pre-charges, and renewals.
  • Used for parking fee collection monitoring, querying, and processing the charging data and service alarm information.
  • Can realize the login and log off of personnel and attendance management.
  • IP68 waterproof protection, adapt to outdoor use.
  • Support wireless intercom and GPS positioning.
CPU model 4 core 1.3G
Operating system Android IOS 5.1
Basic parameter Dimensions: 143×75×18mm, weight: 242g (containing the battery)
Screen parameter 5 inch, resolution: 720×1280, multi touch capacitive screen
Network support 4G all kinds of networks(compatible with 3G/2G)
Storage 2G RAM, 16G ROM, support external Micro SD card(Maximum 32G)
Battery index lithium battery is 3.7v 4000mAh, standby time is 72 hours, and working time is 12 hours
Camera 800 million pixels (rear)/200 million pixels (front, supporting digital zoom)
WLAN function WAPI/WIFI, IEEE 802.11 a/b/g/n
Complete machine Charging Support charging function of the whole machine, without the need to remove the battery
External interface Bluetooth 4.0, USB (pin5,NFC (two PSAM card slots), headset 3.5mm
Using environment Working temperature: –25℃~+65℃, working humidity: 0%~95% (Non-condensation)
Feature function IP65 waterproof, High volume loudspeaker
Other function Three-axis gyroscope, GPS navigation, FM, flashlight
Standard configuration One battery, one charger, USB data line
